We’ve watched presentations fail because the screen was too small for the back of the room. We’ve also seen budgets blown on massive LED walls that overwhelmed intimate spaces. Getting LED display sizing right matters more than most event planners realize. It’s the difference between guests straining to read your CEO’s slides and everyone fully engaged with your message.
The good news? Proper LED screen sizing follows practical formulas based on physics and human vision. After installing hundreds of LED walls across Los Angeles, Orange County, and the Santa Clarita Valley, we’ve learned what works in real venues with real audiences. This guide gives you the same formulas our technical directors use when assessing client venues. No guesswork, just proven math.
The 6x Rule: Your Starting Point for LED Display Sizing
The most reliable LED display size calculator starts with a simple formula: screen height multiplied by six equals your maximum comfortable viewing distance.
Here’s how it breaks down in practice. An 8-foot tall LED wall provides clear visibility up to 48 feet away (8 × 6 = 48). A 10-foot screen works for audiences up to 60 feet from the display. A 6-foot wall maxes out at 36 feet.
This formula comes from studies on human visual acuity and legibility at distance. At six times the screen height, your furthest audience members can comfortably read standard presentation text and see facial expressions in video content. Push beyond that ratio and you’re asking people in the back rows to squint.
We use this as our baseline for every venue assessment. Walk into a hotel ballroom, measure from the screen position to the last row of seats, divide that distance by six to find your minimum screen height. A ballroom with seating 72 feet deep needs at least a 12-foot tall display. Anything smaller and you’re compromising the experience for a significant portion of your audience.
The formula works in reverse too. If you’re locked into a specific screen size due to budget or venue constraints, multiply the height by six to find your effective range. Then adjust your seating layout accordingly.
Pixel Pitch: Why Resolution Determines Minimum Viewing Distance
Pixel pitch gets less attention than screen size, but it’s equally critical for event LED screen size decisions. Pixel pitch measures the distance between LED clusters in millimeters. Smaller numbers mean higher resolution and tighter pixel density.
Common indoor event pixel pitches include 2.9mm, 3.9mm, and 5mm. Outdoor-rated displays typically run 5mm or higher. The tighter the pixel pitch, the closer viewers can sit before seeing individual pixels instead of a smooth image.
A 2.9mm pixel pitch allows comfortable viewing from as close as 10 feet. The general guideline is roughly one meter of minimum viewing distance per millimeter of pixel pitch, so 2.9mm works well from about 9 to 10 feet, while 5mm requires 15 feet or more before the image resolves cleanly. Our corporate clients use 2.9mm for executive presentations and high-end galas where VIP tables sit near the stage. The crisp resolution makes text readable and video content sharp even up close.
A 3.9mm pixel pitch works well for general conference and ballroom events where the front row sits 15 to 20 feet from the screen. This hits the sweet spot for most corporate applications, high enough resolution for professional content without the premium cost of 2.9mm.
A 5mm pixel pitch makes sense for larger venues and outdoor events where minimum viewing distance exceeds 25 feet. We spec these for outdoor concerts, festival stages, and convention halls where audience proximity isn’t a concern.
Here’s the practical consideration: if your venue forces close viewing (small stage, limited depth), you need tighter pixel pitch regardless of overall screen dimensions. We’ve installed compact walls measuring 8 feet wide by 6 feet tall with 2.9mm pitch for intimate product launches because executives stand 12 feet from the screen during presentations.
Match your pixel pitch to your closest viewer, not your average viewer. One executive seeing pixelation during a keynote undermines the entire production value.
Venue-Specific LED Wall Sizing Scenarios
Conference keynote sessions in venues holding 500 to 2,000 people typically require 16 to 20 feet of screen width at minimum. We often configure dual 10×8 or 12×9 LED walls (width × height) flanking the stage rather than one massive center screen. This improves sightlines from side seating and creates visual balance in wide ballrooms.

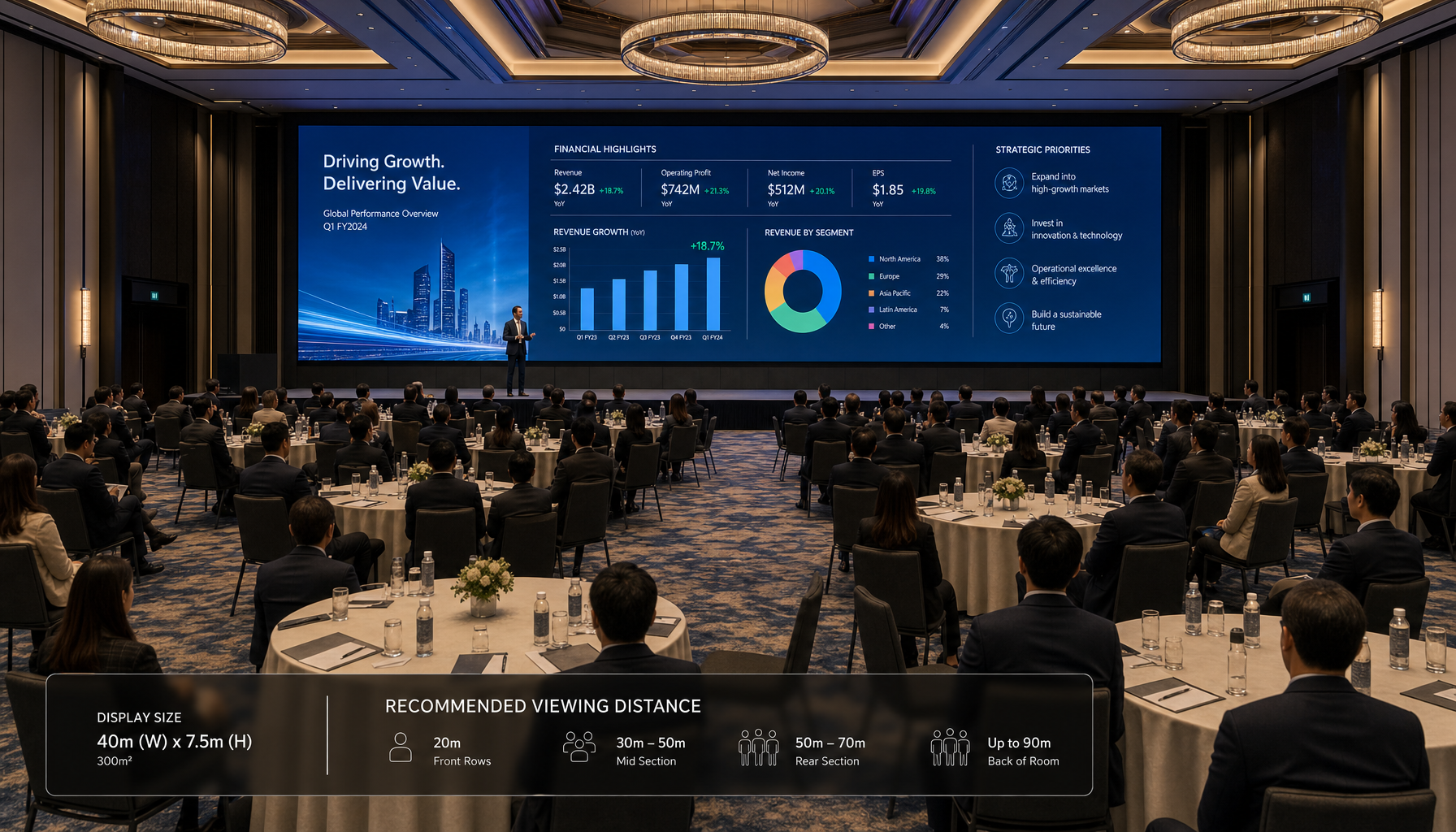

Hotel ballroom galas serving 200 to 500 guests work well with a single 12×9 or 16×9 LED wall as the focal point behind the head table or stage. The LED displays we install for these events combine presentation content early in the evening with live camera feeds during award presentations.
Corporate meeting rooms and breakout sessions need different calculations entirely. A 60-person training session in a hotel meeting room might only need an 8×6 wall because the room depth rarely exceeds 30 feet. We size these based on the actual measured distance from screen to back wall, not on guest count.

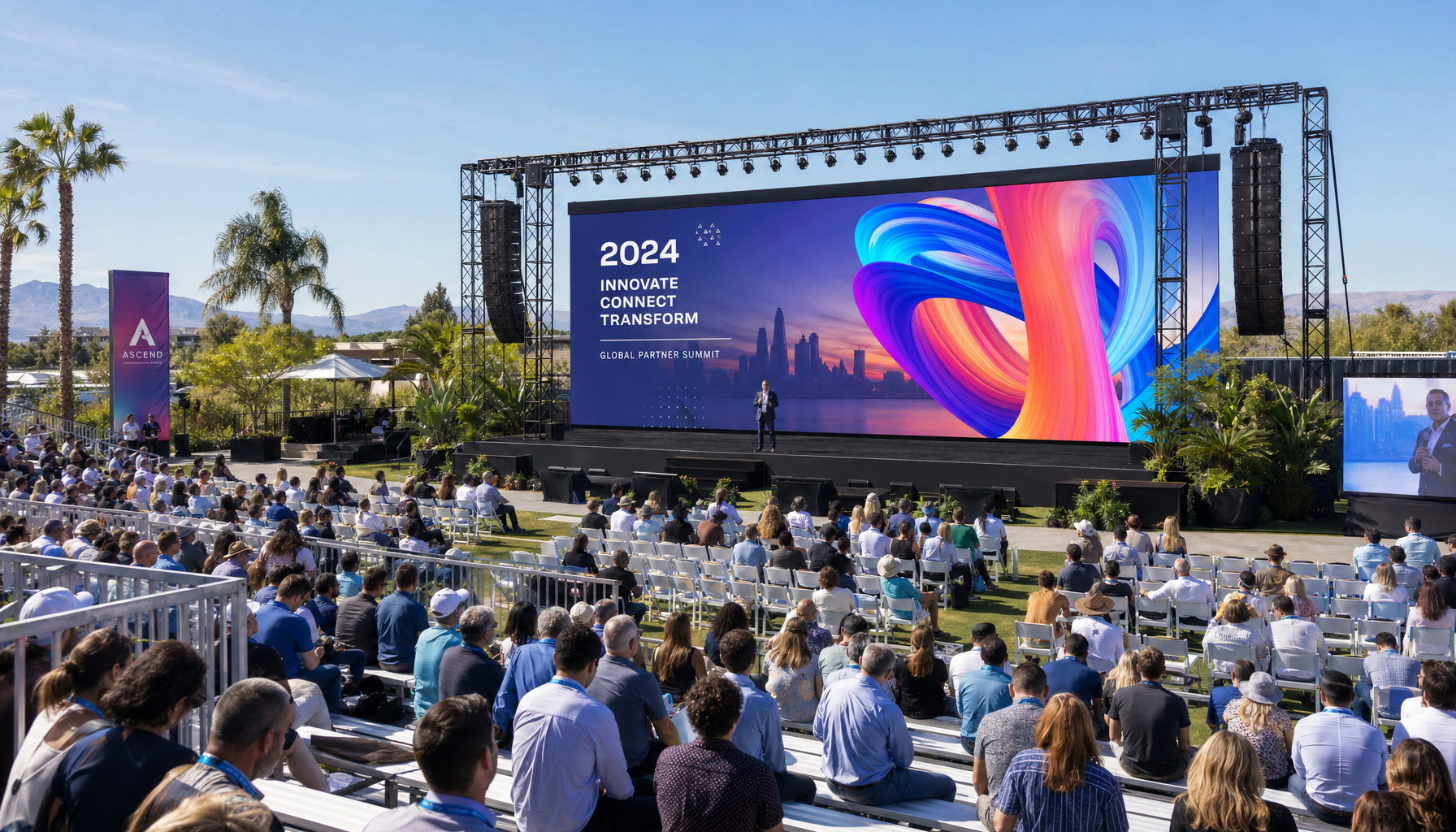

Outdoor events introduce brightness requirements that affect effective viewing distance. A screen that works perfectly indoors at 3,000 nits might wash out in direct California sunlight without stepping up to 5,000-plus nits. That additional brightness extends comfortable viewing distance even with the same physical dimensions.
We handled a Santa Clarita outdoor corporate event last summer where the initial plans called for a 12×9 wall. After visiting the venue and measuring afternoon sun angles, we recommended a 16×9 configuration with a higher brightness rating. The larger size compensated for ambient light wash and maintained the 6x viewing ratio for the full audience footprint.
Aspect Ratio Selection: Beyond Standard 16:9
Most of the content we see at corporate events, including presentations, video playback, and live camera feeds, is already formatted 16:9. Matching your screen to that ratio means no black bars and no wasted panels. If you’re primarily showing video, recorded content, or live camera feeds, stick with 16:9.
Corporate branding and custom graphics open more creative options. We’ve configured 2:1 ultra-wide screens for product launches where the client wanted edge-to-edge brand imagery spanning 24 feet across a 12-foot height. The wide format created cinematic impact for pre-show content and bold graphic reveals.
Vertical content calls for taller configurations. Social media content, branded hashtag displays, and certain types of data visualization work better in 9:16 or custom tall formats. One tech company conference we produced used dual vertical screens (6 feet wide by 10 feet tall) flanking a standard 16:9 center screen. The tall side screens displayed real-time social media feeds while the center ran presentation content. It worked really well, and guests commented on it afterward.
L-shaped corner wraps and curved configurations work in specific architectural contexts. We’ve wrapped LED around ballroom columns to create 270-degree viewing experiences. These custom shapes require careful pixel mapping and content design, but they transform how audiences interact with the space.
The modular nature of modern LED panels makes aspect ratio changes relatively simple. The same inventory can configure as 16:9 for a morning keynote and reconfigure as dual 4:3 screens for afternoon breakouts. Plan your aspect ratio based on content requirements, not arbitrary aesthetics.
Ceiling Height and Venue Constraints That Affect Screen Size
Most hotel ballrooms cap out at 18 to 20 feet of usable ceiling height after accounting for rigging points and required clearances. That physical limit constrains vertical screen dimensions regardless of what viewing distance formulas suggest.

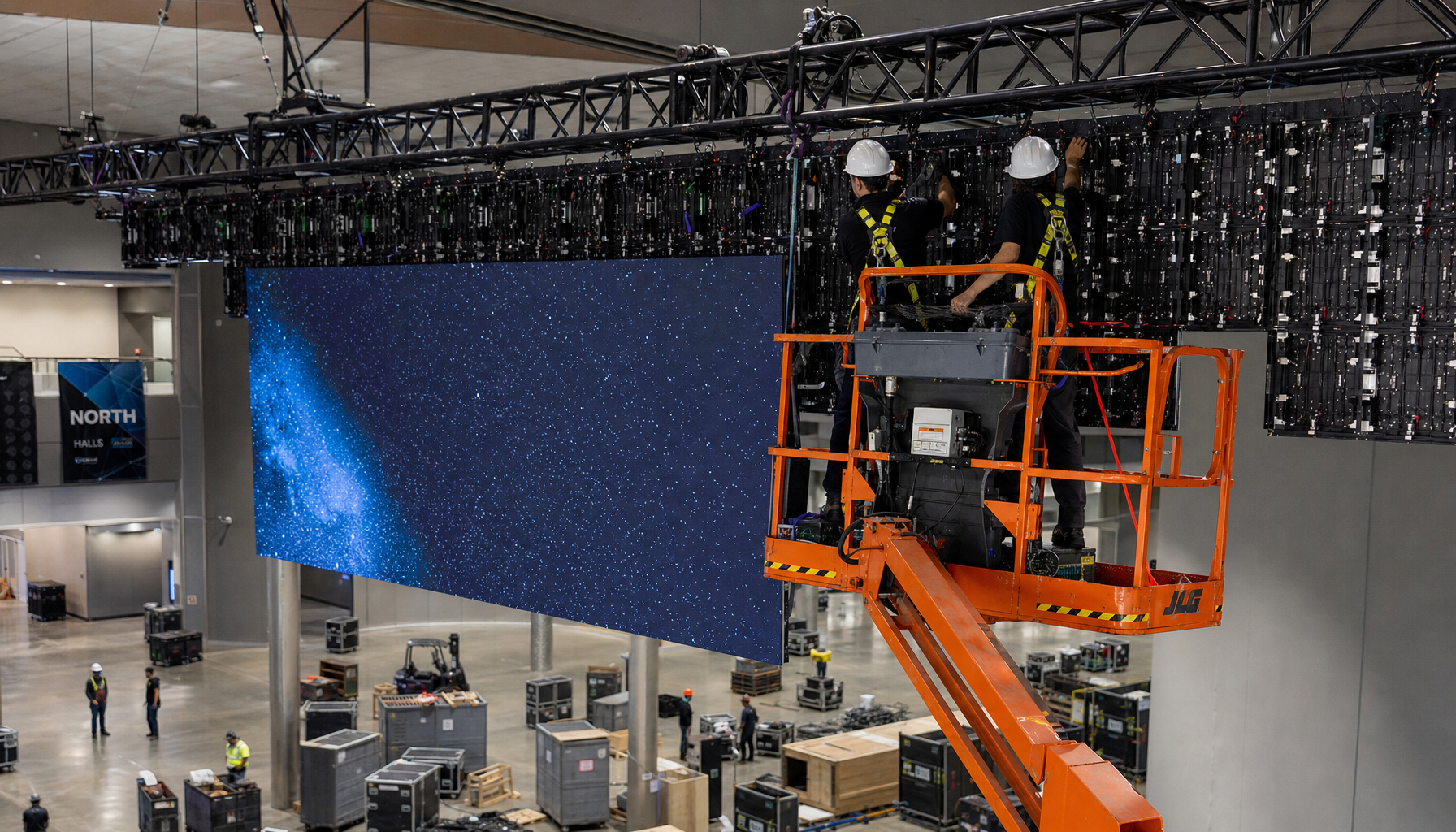

We measure from floor to truss or rigging point, subtract required safety clearances (typically 2 to 3 feet), then subtract the height needed for rigging hardware and motors. What’s left determines maximum screen height. A 20-foot ceiling might only support a 12-foot tall wall once all constraints are factored.
Weight load limits vary dramatically by venue. Older hotels built before LED technology may restrict loads to levels that require spreading screen weight across multiple rigging points. Convention centers typically handle larger loads, but you still need engineered rigging plans approved by venue management.
Sightlines matter as much as raw viewing distance. We’ve worked luxury galas where 6-foot tall floral centerpieces on guest tables blocked the bottom third of any screen mounted at standard height. The solution involved raising the screen higher and adjusting dimensions to maintain proper viewing ratios for seated guests. Nobody mentions that in the planning meeting, but we’ve learned to ask.
This is why our AV production process always includes venue site visits before finalizing screen dimensions. We measure ceiling heights, identify rigging points, assess sightlines from different table positions, and check load ratings. Those measurements drive our final sizing recommendations, not theoretical formulas alone.
Ground-stacked LED walls avoid rigging constraints entirely but introduce different challenges. They consume floor space, require front-of-house depth for stability, and limit stage space in smaller venues. We use ground stacking primarily for outdoor events or venues where rigging isn’t viable.
Right-Sizing Without Overspending: When Bigger Isn’t Better
The biggest LED wall sizing mistake we see? Clients assume maximum square footage equals maximum impact. In practice, screen size follows diminishing returns beyond the 6x viewing ratio.
A 200-person ballroom event with 48 feet of depth needs an 8-foot screen based on viewing distance math. Upgrading to 12 feet might look more impressive, but it doesn’t improve message delivery for that specific audience in that specific room. The additional cost buys aesthetics, not function.
Sometimes two smaller screens deliver better results than one large screen. Wide ballrooms with challenging sightlines benefit from dual 10×8 displays flanking the stage instead of a single 16×9 center screen. Guests at side tables get clear views without neck-craning, and the total square footage often costs less than one massive wall.
We’ve recommended 8×6 LED walls for intimate 100-person events when clients initially requested 16×9 configurations. After measuring their venue and running viewing distance calculations, the smaller size covered their actual needs. They invested the savings in higher pixel pitch for better resolution instead of unnecessary square footage. Honestly, that’s usually the smarter trade.
Budget conversations should start with an honest needs assessment. What’s your furthest viewer distance? What’s your minimum viewing distance? What pixel pitch serves your content type? Answer those questions first, then price accordingly.
The modular advantage of LED panels means you can right-size for each event instead of committing to one configuration. A production company’s inventory might reconfigure as a 12×9 for a 300-person gala, then rebuild as dual 8×6 screens for concurrent breakout sessions the next day. Flexibility beats maximum size.
How to Put the LED Display Size Calculator to Work for Your Event
Start with the 6x rule. Measure your space, identify your furthest viewer, calculate the minimum screen height. Then verify that ceiling clearances support that height, check pixel pitch against your closest viewer, and confirm weight loads allow your configuration.
For aspect ratio, follow your content. Standard presentations and video use 16:9. Custom branded work opens other options. Match your screen shape to what you’re actually showing, not what looks impressive in a venue photo.
And work with production partners who visit your venue before recommending screen dimensions. We’ve done hundreds of site visits across Santa Clarita, Los Angeles County, and throughout Southern California. The difference between venues is enormous. A hotel ballroom running 16-foot ceilings instead of the assumed 20 feet changes everything about what’s possible.
The goal isn’t the biggest screen. It’s the right screen for your audience, your room, and your message. That’s where the investment pays off.
